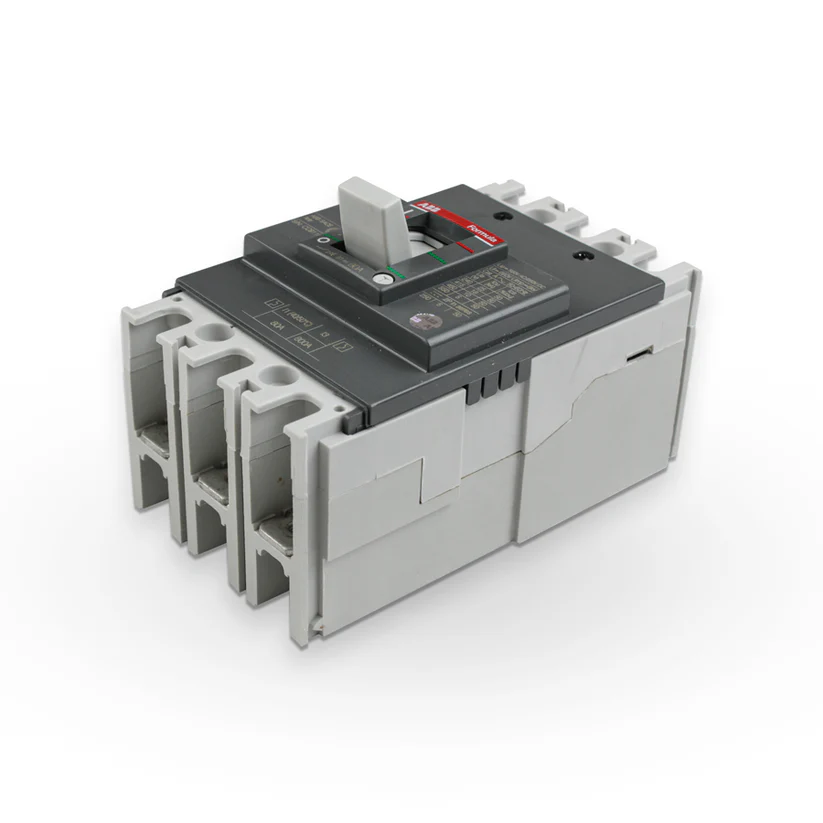

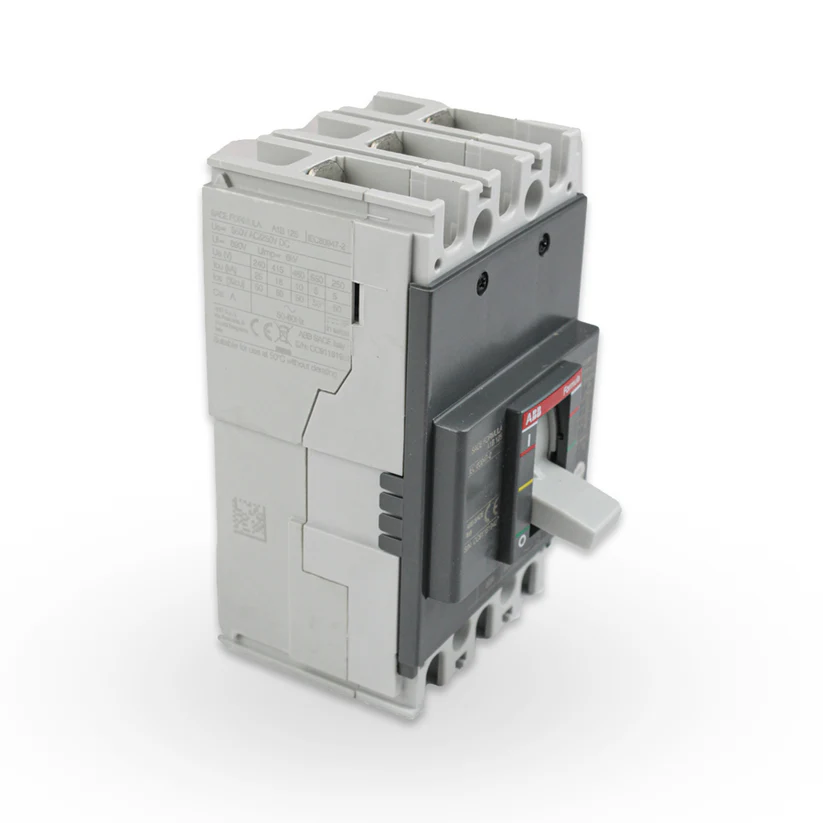

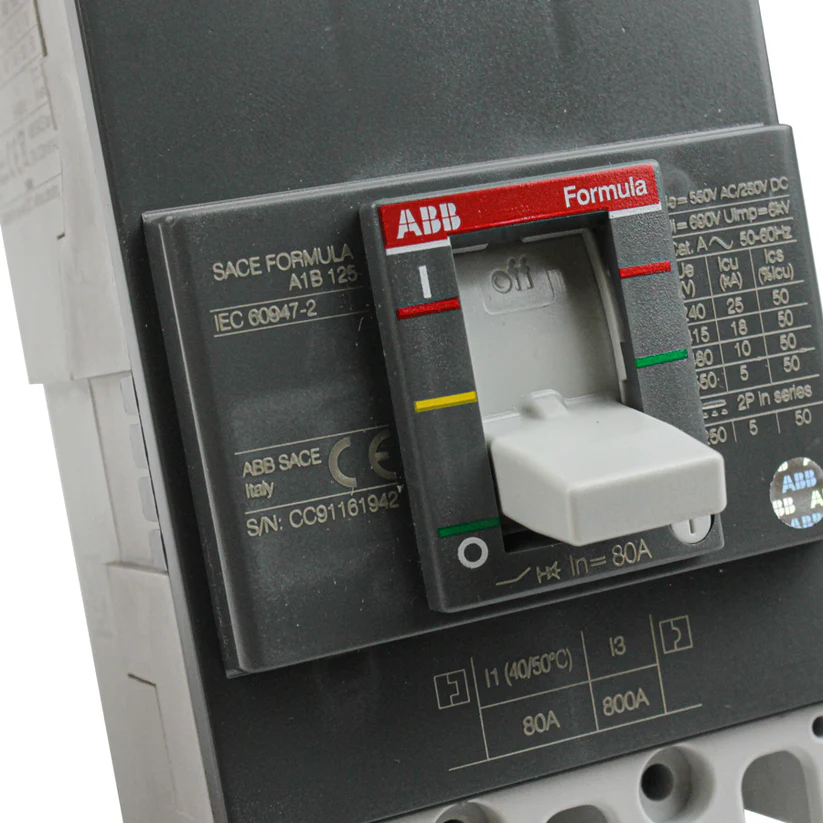

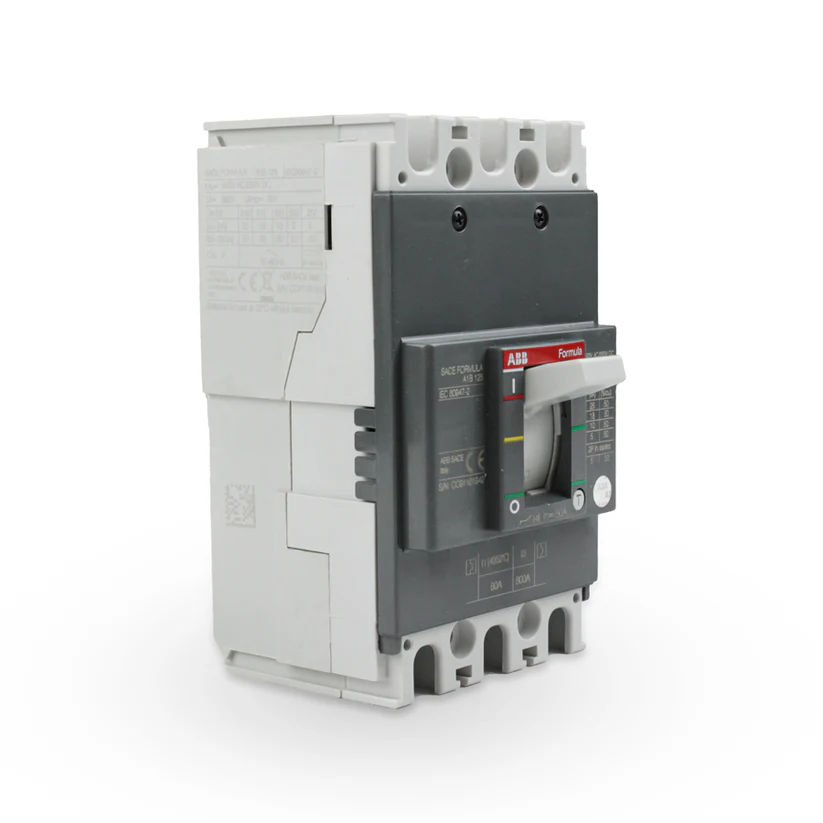

ABB A1B 125 3 Pole Molded Case Circuit Breaker
Key Features
- Electrical Durability: 1500 cycle
- Mechanical Durability: Nr. Operations 8500 cycle
- Number of Poles: 3
- Input Voltage Type: AC
- Terminal Connection Type: Front
- Power Loss: at Rated Operating Conditions per Pole 3 W
BRAND:
50 in stock
Price range: ₨13,800 through ₨24,150
Features
• Electrical Durability: 1500 cycle
• Mechanical Durability: Nr. Operations 8500 cycle
• Number of Poles: 3
• Operational Voltage: 550 V AC 250 V DC
• Input Voltage Type: AC
• Rated Current (In): 15-400 | 20-400 | 25-400 | 30-400 | 40-400 | 50-500 | 60-600 | 70-700 | 80-800 | 90-900 | 100-1000 | 125-1250 |
• Rated Uninterrupted Current (Iu): 125 A
• Power Loss: at Rated Operating Conditions per Pole 3 W
• Terminal Connection Type: Front
Go to the “BUY NOW” button and have it at your doorstep.
Explore Metco.pk to find the latest “ABB” breakers and other industrial components at discounted prices in Pakistan with a cash-on-delivery service available nationwide.
We are dealing in “ABB Breakers” in Pakistan.
Specifications
| BRAND | ABB |
|---|---|
| Ampere Rating | 100-1000A, 125-1250A, 15-400A, 20-400A, 25-400A, 30-400A, 40-400A, 50-500A, 60-600A, 70-700A, 80-800A, 90-900A |
| No of Poles | 3 Pole |
Product Specifications
|
number of poles
|
3
|
|
breaking capacity
|
18ka
|
|
input voltage type
|
ac
|
|
terminal connection type
|
front
|
|
rated uninterrupted current (iu)
|
125 a
|
|
operational voltage
|
550 v ac 250 v dc
|
|
input measuring range
|
0v-300v
|
|
rated current (in)
|
15-400, 20-400. 25-400, 30-400, 40-400, 50-500, 60-600, 70-700, 80-800, 90-900, 100-1000, 125-1250
|
Based on 0 reviews
Be the first to review “ABB A1B 125 3 Pole Molded Case Circuit Breaker”
