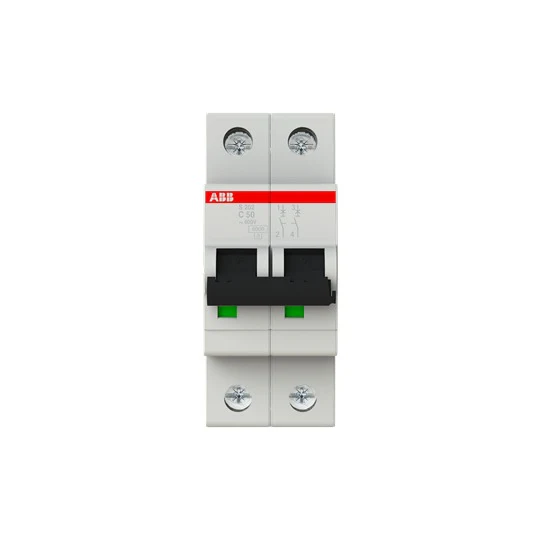

ABB S 202 10 KA 2 Pole Miniature Circuit Breaker

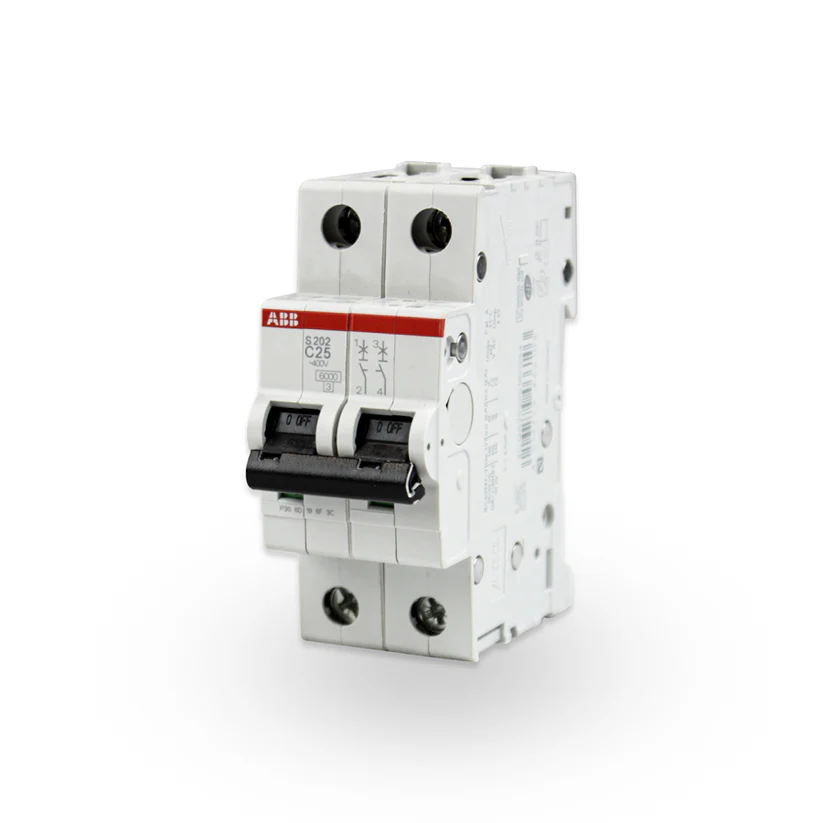

ABB S 202 10 KA 2 Pole Miniature Circuit Breaker - Image 2

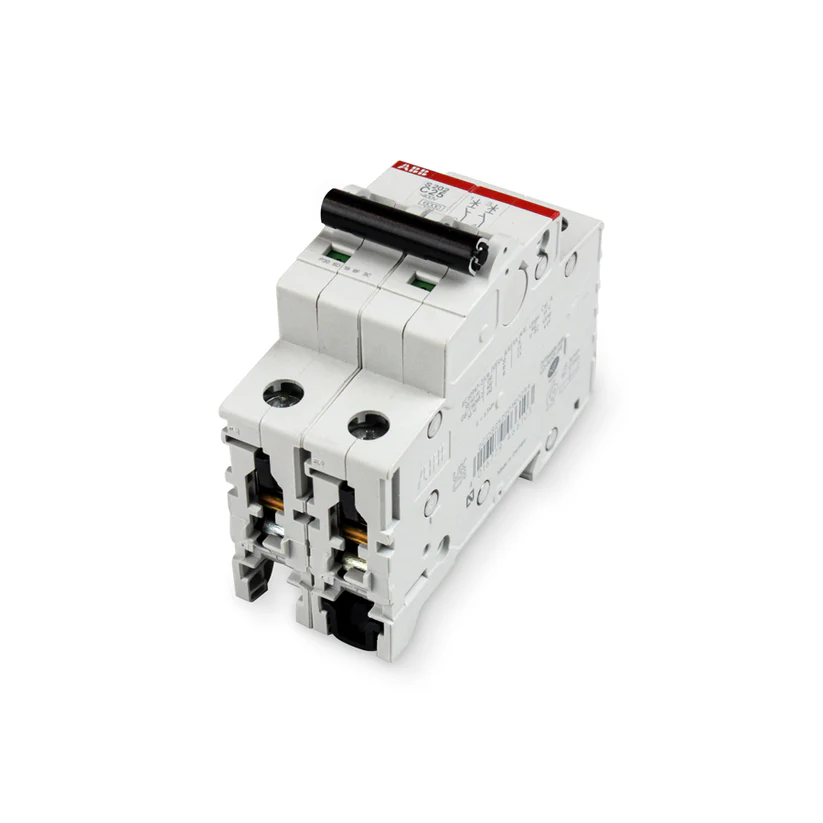

ABB S 202 10 KA 2 Pole Miniature Circuit Breaker - Image 3

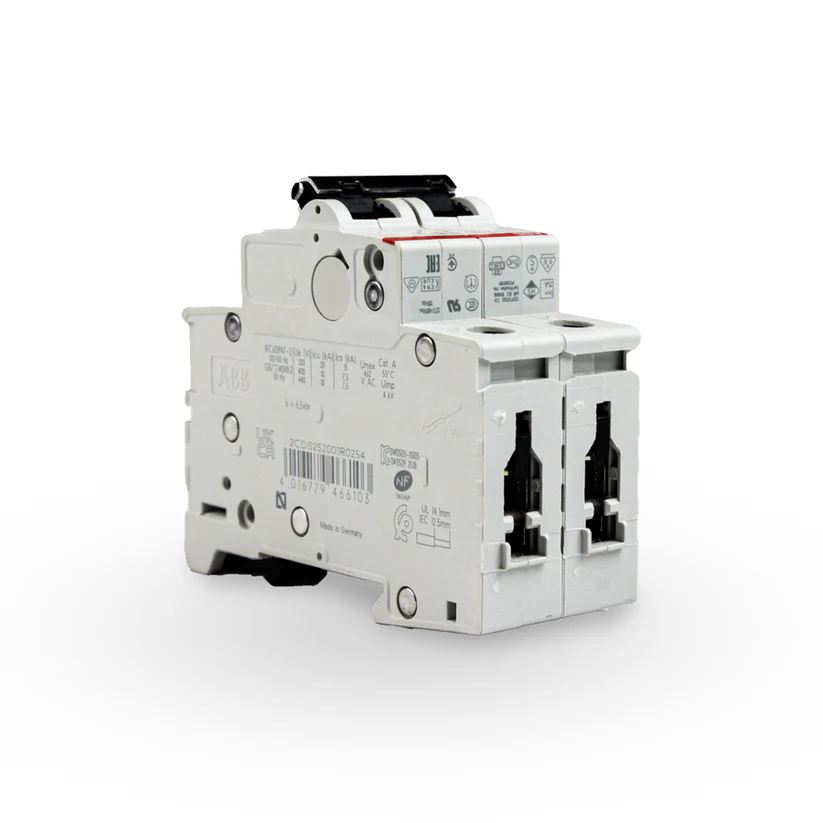

ABB S 202 10 KA 2 Pole Miniature Circuit Breaker - Image 4
,

ABB S 202 10 KA 2 Pole Miniature Circuit Breaker

ABB
Key Features
  • Tripping Characteristic: C
  • Input Voltage Type: AC
  • 4.2 W at Rated Operating Conditions per Pole 2.1 W
  • Screw Terminal Type: Cage Terminal
  • Rated Current (In): 6A~10A | 16A~40A | 50A~63A | 50A~63A
  • Standards: IEC/EN 60898-1 IEC/EN 60947-2 UL 1077

BRAND:

Availability:

50 in stock

Price range: ₨4,260 through ₨7,250

Compact Home S 200 miniature circuit breakers are currently limited. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.

They are available in different characteristics (B, C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC), and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.



Features

• Standards: IEC/EN 60898-1 IEC/EN 60947-2 UL 1077

• Tripping Characteristic: C

• Rated Operational Voltage: acc. to IEC 60898-1 400 V AC | acc. to IEC 60947-2 440 V AC

• Operational Voltage: Maximum (Incl. Tolerance) 125 V DC | Maximum (Incl. Tolerance) 440 V AC| Minimum 12 V AC | Minimum 12 V DC

• Input Voltage Type: AC

• Rated Current (In):  6A~10A | 16A~40A | 50A~63A

• Power Loss: 4.2 W at Rated Operating Conditions per Pole 2.1 W

• Screw Terminal Type: Cage Terminal





Environmental

• Ambient Air Temperature: Operation -25 … +55 °C | Storage -40 … +70 °C

• Degree of Protection: IP20 | Enclosure with Cover IP40

• Environmental Conditions: 28 cycles with 55 °C / 90-96 % | and 25 °C / 95-100 %

SKU: ABB-102 Categories: , Tag:

Specifications

BRAND

ABB
Ampere Rating

16A ~ 40A, 50A ~ 63A, 6A ~ 10A
No of Poles

2 Pole
Product Specifications
input voltage type
ac/dc
rated current (in)
6a~10a
16a~40a
50a~63a
power loss
4.2 w at rated operating conditions per pole 2.1 w
ambient air temperature
operation -25 … +55 °c, storage -40 … +70 °c
degree of protection
ip20 , enclosure with cover ip40
environmental conditions
28 cycles with 55 °c / 90-96 % , and 25 °c / 95-100 %
