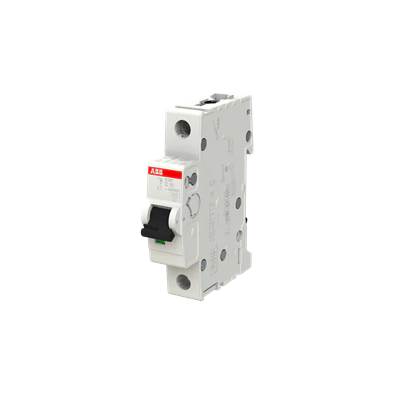

ABB S201-C 1 Pole Miniature Circuit Breaker 10KA

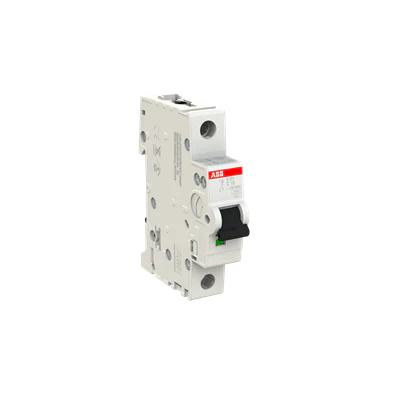

ABB S201-C 1 Pole Miniature Circuit Breaker 10KA - Image 2

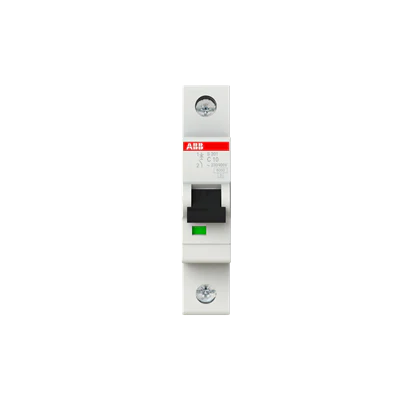

ABB S201-C 1 Pole Miniature Circuit Breaker 10KA - Image 3
,

ABB S201-C 1 Pole Miniature Circuit Breaker 10KA

ABB
Key Features
  • Protects against overloads and short circuits
  • Delayed thermal for overloads and electromechanical for short circuits
  • IEC/EN 60898-1, IEC/EN 60947-2, UL1077
  • Suitable for residential, commercial, and industrial use

BRAND:

Availability:

50 in stock

Price range: ₨1,650 through ₨1,870

The S201-C10,S201-C16  Miniature Circuit Breaker is a single-pole (1P), C-type MCB with a 10 A, 16A rating, designed to protect electrical circuits from overloads and short circuits. Part of the System pro M compact S200 series, it features a dual tripping mechanism for reliable performance, including delayed thermal tripping for overloads and electromechanical tripping for short circuits. It meets standards IEC/EN 60898-1, IEC/EN 60947-2, and UL1077, making it suitable for residential, commercial, and industrial use. Additionally, it offers space-saving with the option for a bottom-fitting auxiliary contact.

SKU: ABB-105 Categories: , Tag: Brand:

Specifications

BRAND

ABB
Ampere Rating

16A ~ 40A, 6A ~ 10A
No of Poles

1 Poles
Product Specifications
Standards
iec/en 60898-1 / iec/en 60947-2 / ul 1077
tripping characteristic
c
rated operational voltage
acc. to iec 60898-1 230 / 400 v ac / acc. to iec 60898-1 230 v / acc. to iec 60947-2 230 v ac
operational voltage
maximum (incl. tolerance) 253 v ac / maximum (incl. tolerance) 72 v dc / minimum 12 v ac / minimum 12 v dc
rated insulation voltage (ui)
acc. to iec/en 60664-1 440 v
rated impulse withstand voltage (uimp)
4 kv at 2000 m / 5 kv at sea level / 6.2 kv
dielectric test voltage
50/60 hz, 1 min
input voltage type
ac/dc
rated current (in)
10 a
rated short-circuit capacity
(ac) 6 ka / (dc) 6 ka / (230 / 400 v ac) 6 ka / (230 v) 6 ka / (400 v) 6 ka
rated ultimate short-circuit breaking capacity (icu)
(133 v ac) 20 ka / (230 v ac) 10 ka / (24 v dc) 20 ka / (60 v dc) 10 ka / (230 v) 10 ka / (400 v) 10 ka
rated conditional short-circuit current (inc)
(230 v) 10 ka / (400 v) 10 ka
rated service short-circuit breaking capacity (ics)
(133 v ac) 15 ka / (230 v ac) 7.5 ka
frequency (f)
50 hz
rated frequency (f)
50 / 60 hz
power loss
2.1 w / at rated operating conditions per pole 2.1 w
power supply connection
arbitrary
contact position indication
red on / green off
energy limiting class
3
electrical endurance
20000 ac cycles
mechanical endurance
20000 cycles
number of protected poles
1
number of poles
1
overvoltage category
iii
tightening torque
2.8 n·m
mounting type
din-rail
screw terminal type
failsafe bi-directional cylinder-lift terminal
actuator marking
i / o
actuator material
insulation group ii, black, sealable
housing material
insulation group ii, ral 7035
mounting on din rail
th35-15 (35 x 15 mm mounting rail) acc. to iec 60715 / th35-7.5 (35 x 7.5 mm mounting rail) acc. to iec 60715
mounting position
any
recommended screw driver
pozidriv 2
accessories available
yes
technical information
miniature circuit breaker
connecting capacity
busbar 10 / 10 mm² / flexible with ferrule 0.75 … 25 mm² / flexible 0.75 … 25 mm² / rigid 0.75 … 35 mm² / stranded 0.75 … 35 mm²
installation size
acc. to din 43880 1
wire stripping length
12.5 mm
terminal type
screw terminals
