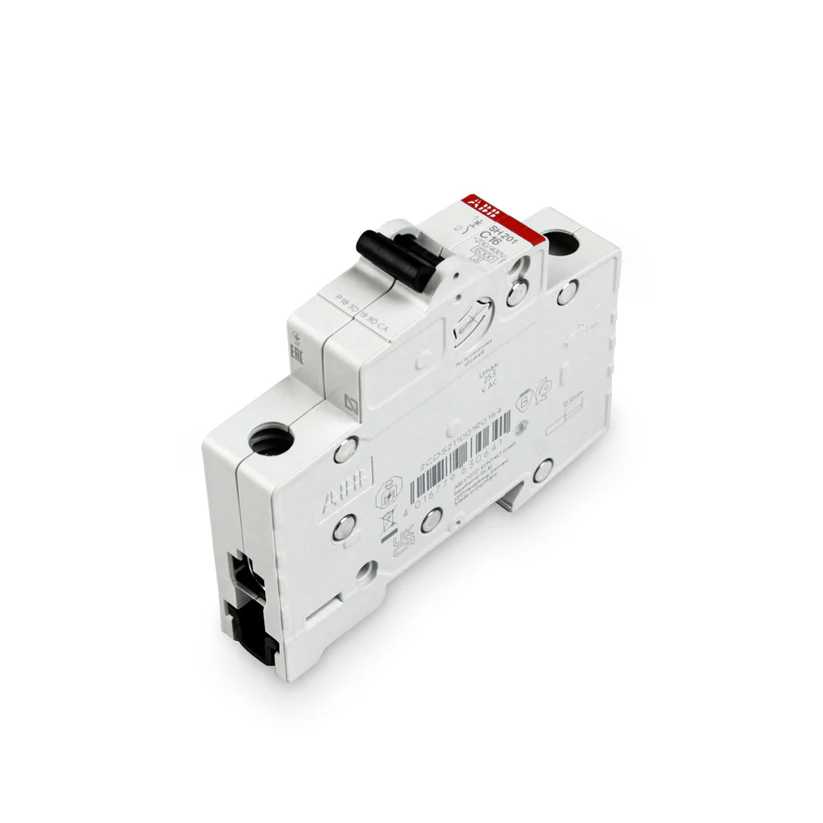

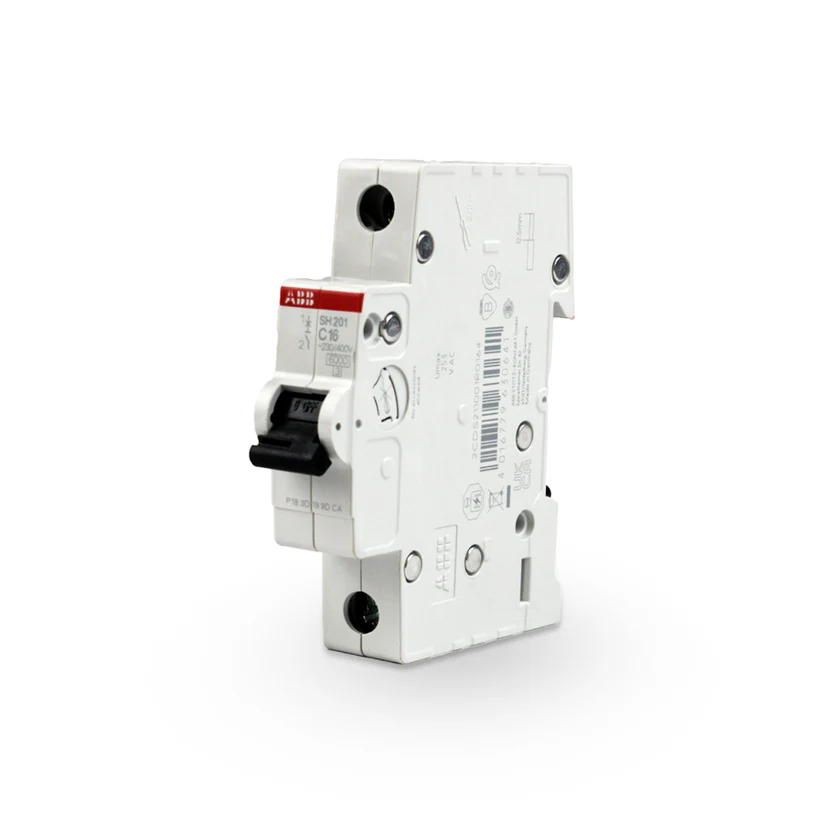

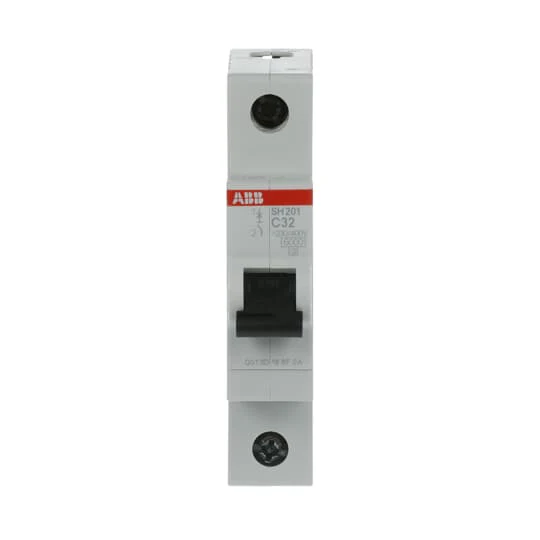

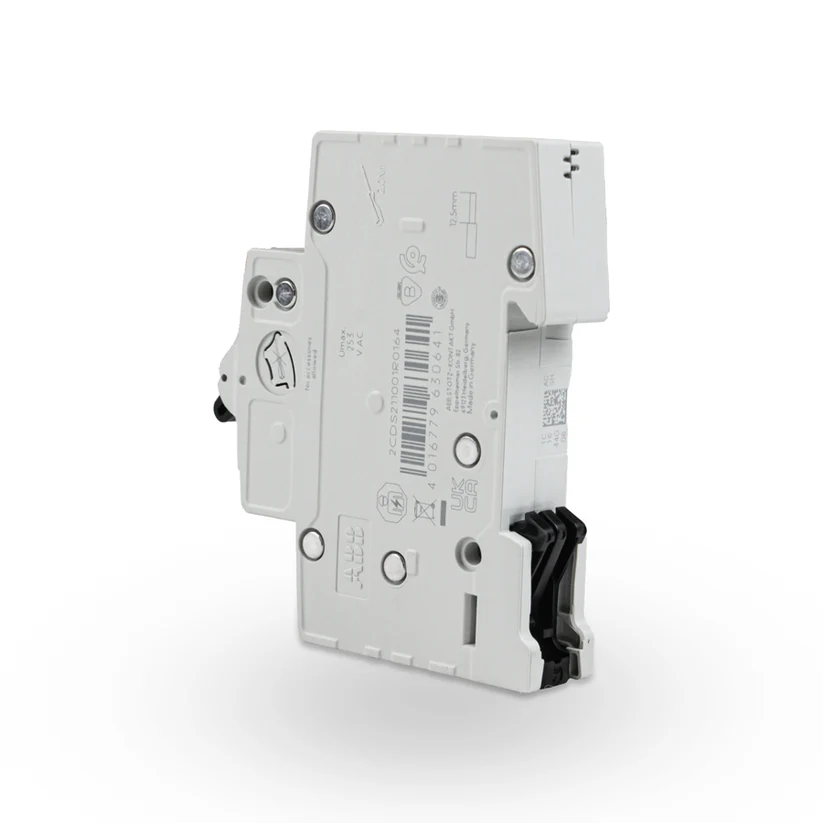

ABB SH 201 6 KA 1 Pole Miniature Circuit Breaker

Compact Home SH200 miniature circuit breakers are currently limited. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanical tripping mechanism for short circuit protection. They are available in other characteristics (B, C),

configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC), and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.

Features

• Standards: IEC/EN 60898-1

• Tripping Characteristic: C

• Rated Operational Voltage: acc. to IEC 60898-1 230 / 400 V AC

• Operational Voltage: Maximum (Incl. Tolerance) 253 V AC | Minimum 12 V AC

• Input Voltage Type: AC

• Rated Current (In): 16A~10A | 16A~32A

• Power Loss: 2.5 W at Rated Operating Conditions per Pole 2.5 W

• Screw Terminal Type: Cage Terminal

Environmental

• Ambient Air Temperature: Operation -25 … +55 °C | Storage -40 … +70 °C

• Degree of Protection: IP20 | Enclosure with Cover IP40

• Environmental Conditions: 28 cycles with 55 °C / 90-96 % | and 25 °C / 95-100 %
