OVERVIEW:
IP camera with efficient H.264 image compression algorithm for clear and smooth video streaming at maximal resolution of 3 MPx. The range of IR illumination according to the manufacturer data, depends on outer conditions (visibility – air transparency, environment, wall colors ie. scene reflectance). PoE powering possibility, compatible with the 802.3af standard makes the device more universal and easier to install.
Features:
1/3″ progressive scan CMOS
Up to 3.0 megapixel
2.8mm/4mm/6mm fixed focal lens
Up to 30 m IR range
Dual stream
Digital WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
PoE (Power over Ethernet)
IP67
Mobile monitoring via Hik-Connect or iVMS-4500
Document:

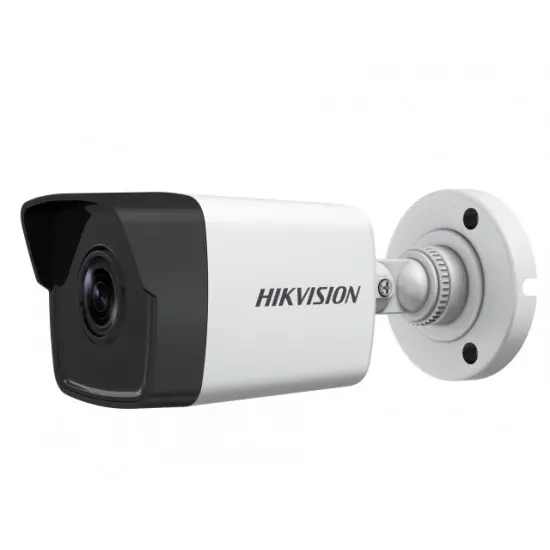

Hikvision DS-2CD1031-I 3.0 MP Network Bullet Camera
Specifications
| BRAND | Hikvision |
|---|
| Camera Specification | |
| Day&Night | IR cut filter with auto switch |
| DNR | 3D DNR |
| Min Illumination | 0.01lk @ (F1.2, AGC on), 0 lx with IR |
| Protection Level | IP67 |
| Shutter Time | 1/3 s to 1/100, 000 s, support slow shutter |
| WDR | Digital WDR |
| Display Specification | |
| Lens Mount | M12 |
| Lens | 2.8mm, 4mm, 6mm@F2.0 |
| Storage Specification | |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Summary | |
| Resolution | 1920 × 1080 |
| Power Consumption | Max. 5 W/6.5 W (PoE) |
| Weight | 500 g (1.1 lb.) |
| Operating Conditions | 69.1 × 66 × 172.7mm |
| HARDWARE FEATURES | |
| Protocol | TCP / IP, ICMP, HTTP, https, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Power Supply | 12 V DC ± 25%, PoE (802.3af) |
| TECHNICAL SPECIFICATION | |
| General | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| General Specification | |
| Frame Rate | Main Stream: 50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720)Sub Stream: 50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps @(704 × 480, 640 × 480, 352 × 240, 320 × 240) |
| Image Sensor | 1/3″ progressive scan CMOS |
| IR Range | Up to 30 m |
| Dimensions | 69.1 mm × 66 mm × 172.7 mm ( 2.7″ × 2.6″ × 6.8″) |
| Input | |
| Video Compression | Main stream: H.264+/H.264 Sub stream: H.264/MJPEG |
