OVERVIEW:
The DS-2CD1131-I camera is dedicated for IP CCTV systems. The ceiling camera has been equipped with 3 MP 1/3″ CMOS sensor providing good video coverage even in low-light conditions. Along with IR illuminator with range up to 30 m, the camera can also operate in complete darkness. The built-in 2.8 mm lens has 105° viewing angle. The IP67-rated housing of the camera protects the electronics against adverse weather conditions. The camera can be powered conventionally from a 12 VDC source or with the use of PoE option (802.3af).
Features:
1/3″ progressive scan CMOS
Up to 3.0 megapixel
2.8 mm/4 mm/6 mm fixed focal lens
Up to 30 m IR range
Dual stream
Digital WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
PoE (Power over Ethernet)
IP67, Ik10
Mobile monitoring via Hik-Connect or iVMS-4500
Document:

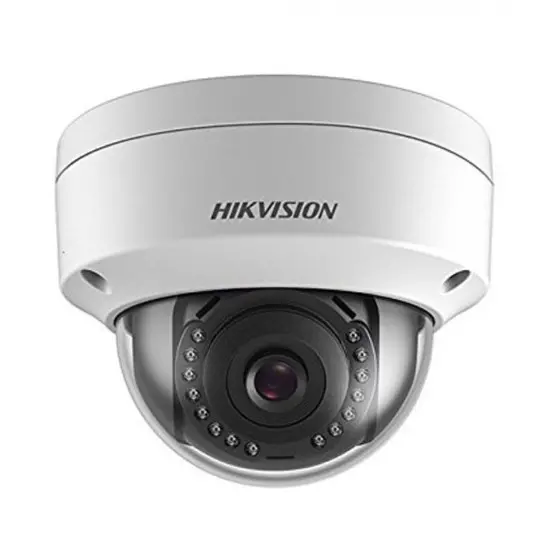

Hikvision DS-2CD1131-I 3MP Network Dome Camera
Specifications
| BRAND | Hikvision |
|---|
| Camera Specification | |
| BLC | There are, customizable zones |
| Day&Night | ICR filter |
| DNR | 3D DNR |
| Minimum Illumination | 0.01 Lux / F1.2; 0 Suite with IR |
| Protection Level | IP67, IK10 |
| Shutter Time | 1/3 s ~ 1 / 100,000 s |
| Display Specification | |
| Lens | f = 2.8 mm / F2.0, viewing angle: 105.8 ° |
| Storage Specification | |
| Network Storage | NAS (NFS, SMB / CIFS) |
| Summary | |
| Resolution | 2304×1296 |
| Power Consumption | 5.5 W |
| Weight | 500g |
| Range | DWDR |
| HARDWARE FEATURES | |
| Protocol | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Power Supply | DC 12V ± 10%, PoE (802.3af) |
| Interface | |
| Network Interface | 1-RJ45 10M / 100M |
| TECHNICAL SPECIFICATION | |
| Working temperature | -30 ° C ~ 60 ° C |
| General Specification | |
| Frame Rate | 2304×1296 – 20 frames / sec .; 1080p / 960p / 720p – 25 frames / second. |
| Image Sensor | 1/3 “Progressive Scan CMOS |
| IR Range | up to 30 meters |
| Dimension | f 111×82 mm |
| Input | |
| Video Compression | Main stream: H.264 + / H.264; Extras. stream: H.264 / MJPEG |
