Availability:
50 in stock
₨13,500
50 in stock
OVERVIEW:

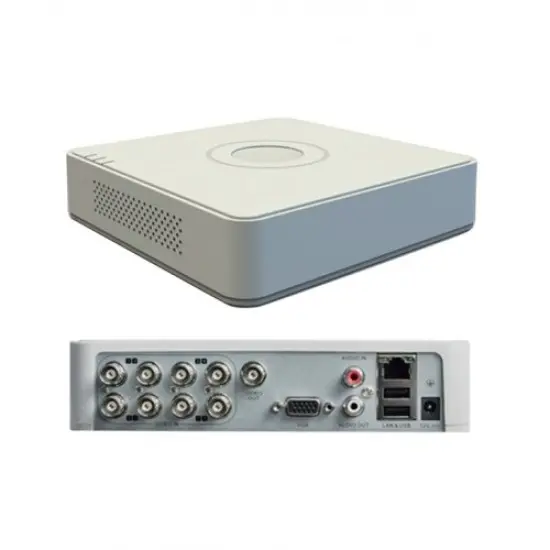

8 channels and 1 HDD mini size DVR
H.264+ / H.264 video compression
Encoding ability up to 1080p lite @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 10 network cameras can be connected
Specifications
| BRAND | Hikvision |
|---|
| Computers Specs | |
| Power Supply Type | 12V DC |
| GAMING ACCESSORIES | |
| Audio in/out ports | 1-ch |
| Summary | |
| Power Consumption | ≤20W(without hard disks) |
| Weight | ≤ 1.2 kg / 2.6 lb(without hard disks) |
| HARDWARE FEATURES | |
| Network Protocols and Features | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Networking interface | 1; 10M / 100M self-adaptive Ethernet interface |
| Interface | 1 SATA Interface |
| Interface | |
| Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
| Output | |
| Video Output | 1 x HDMI output 1 x VGA output (independent) |
| Type | |
| Support Camera Type | 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1. Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz Support CVI input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz support CVBS input |
| General Specification | |
| Chassis (W x D x H) | Mini 1U chassis |
| Compression | H.264 |
| Dual Stream | Support |
| Frame Rate | 1/16 fps ~ Real time frame rate |
| Memory | Up to 6 TB capacity for each disk |
| Recording Resolution | 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: 4CIF (non-real-time) / 2CIF (non-real-time) / CIF |
| Working Condition | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) Working Humidity: 10% ~ 90% |
| Dimension | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) |
| Input | |
| Video Compression | H.264,H.264+ |
| Video Input | 16-ch BNC interface (1.0Vp-p, 75 Ω) |
| INTERFACE | |
| HDMI | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| USB | 2 USB 2.0 Interfaces |
