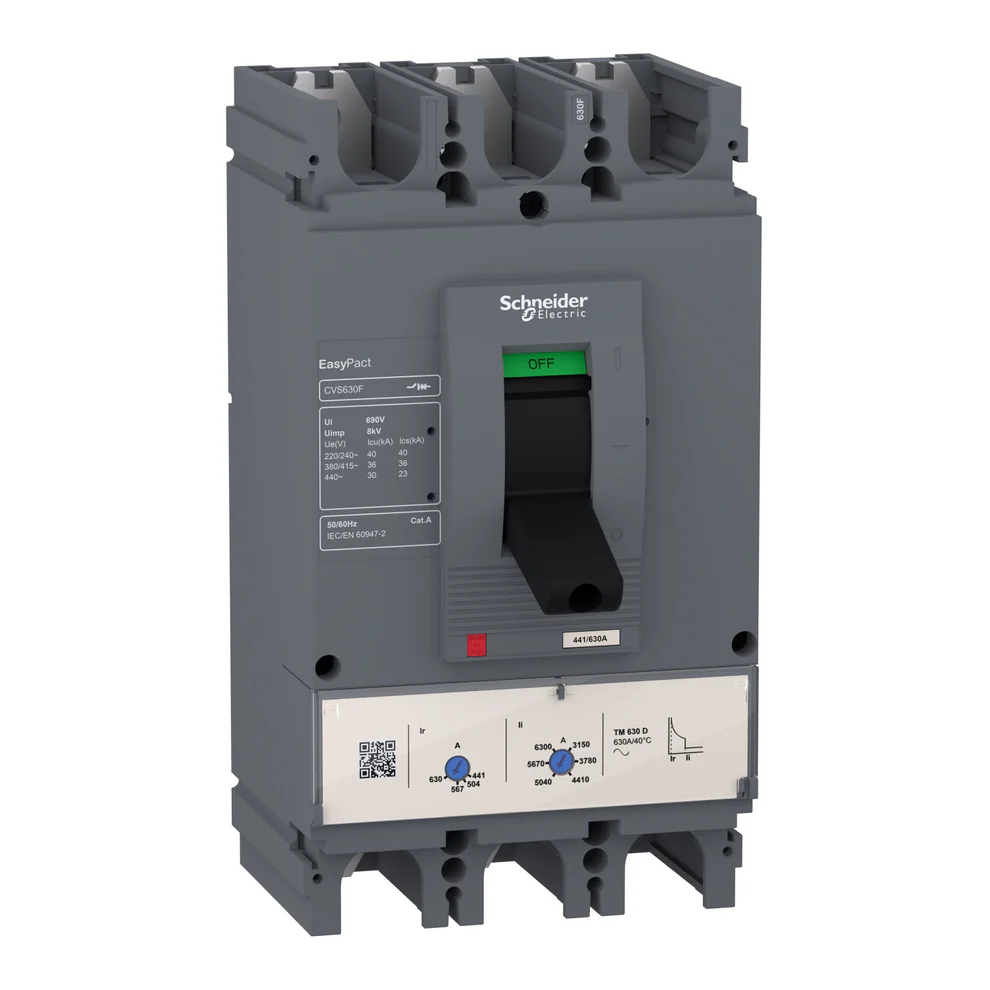

Schneider CVS630F 3 Pole 630A Molded Case Circuit Breaker
Key Features
- Range: EasyPact
- Product name: EasyPact CVS
- Net weight: 5.2 kg
- Device short name: CVS630F
- Product or component type: Circuit breaker
- Device application: Distribution
- Poles description: 3P
- Protected poles description: 3D
- Earth leakage protection (Vigi add-on): Without
- Rated current [In]: 630 A at 40 °C
- Network type: AC
- Utilisation category: Category A
Brand:
Availability:
50 in stock
₨165,000
50 in stock
EasyPact CVS630F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized building protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 415VAC 50/60Hz. This product embeds a 630A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS630F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front-face device (IEC 60664-1).
Specifications
| BRAND | Schneider |
|---|
Product Specifications
|
Range
|
easypact
|
|
product name
|
easypact cvs
|
|
device short name
|
cvs630f
|
|
product or component type
|
circuit breaker
|
|
device application
|
distribution
|
|
poles description
|
3p
|
|
net weight
|
5.2 kg
|
|
protected poles description
|
3d
|
|
earth leakage protection (vigi add on)
|
without
|
|
rated current [in]
|
630 a at 40 °c
|
|
network type
|
ac
|
|
utilisation category
|
category a
|
|
breaking capacity [icu]
|
36 ka icu at 380/415 v ac 50/60 hz conforming to iec 60947-2
|
|
trip unit name
|
tm-d
|
|
trip unit technology
|
thermal-magnetic
|
|
trip unit rating
|
630 a at 40 °c
|
|
protection type
|
short-circuit protection (magnetic) / overload protection (thermal)
|
|
rated impulse withstand voltage [uimp]
|
8 kv conforming to en/iec 60947-2
|
|
network frequency
|
50/60 hz
|
|
breaking capacity code
|
f
|
|
neutral position
|
left
|
|
mechanical durability
|
15000 cycles
|
|
electrical durability
|
4000 cycles 415 v in conforming to iec 60947-2
|
|
control type
|
toggle
|
|
thermal protection adjustment range
|
441…630 a
|
|
neutral protection setting
|
no protection (3d)
|
|
long time pick-up adjustment type ir
|
adjustable
|
|
long time pick-up adjustment range
|
0.7…1 x in
|
|
long time delay adjustment type
|
fixed
|
|
instantaneous pick-up adjustment type ii
|
adjustable
|
|
instantaneous pick-up adjustment range
|
5…10 x in
|
|
contact position indicator
|
yes
|
|
mounting mode
|
fixed
|
|
mounting support
|
backplate
|
|
upside connection
|
front
|
|
downside connection
|
front
|
|
standards
|
en 60947-2 / iec 60947-2
|
|
electrical shock protection class
|
class ii
|
|
pollution degree
|
3 conforming to iec 60664-1
|
|
ip degree of protection
|
ip40
|
|
ambient air temperature for operation
|
-25…70 °c
|
|
ambient air temperature for storage
|
-50…85 °c
|
