Circuit Breakers, Miniature Circuit Breakers
Schneider Easy9 3 Pole Miniature Circuit Breaker, 6 kA
Key Features
- Range: Easy9
- Colour: Grey (RAL 7035)
- Component Type: Miniature circuit-breaker
- Device application: Distribution
- Number of protected poles: Three Pole
- Rated Current: 6 A, 10 A, 16 A, 20 A, 25A, 32 A, 40 A
- Network type: AC
- Curve code: C
- Breaking capacity: Icn 6 KA
Brand:
Availability:
50 in stock
Price range: ₨6,500 through ₨8,500

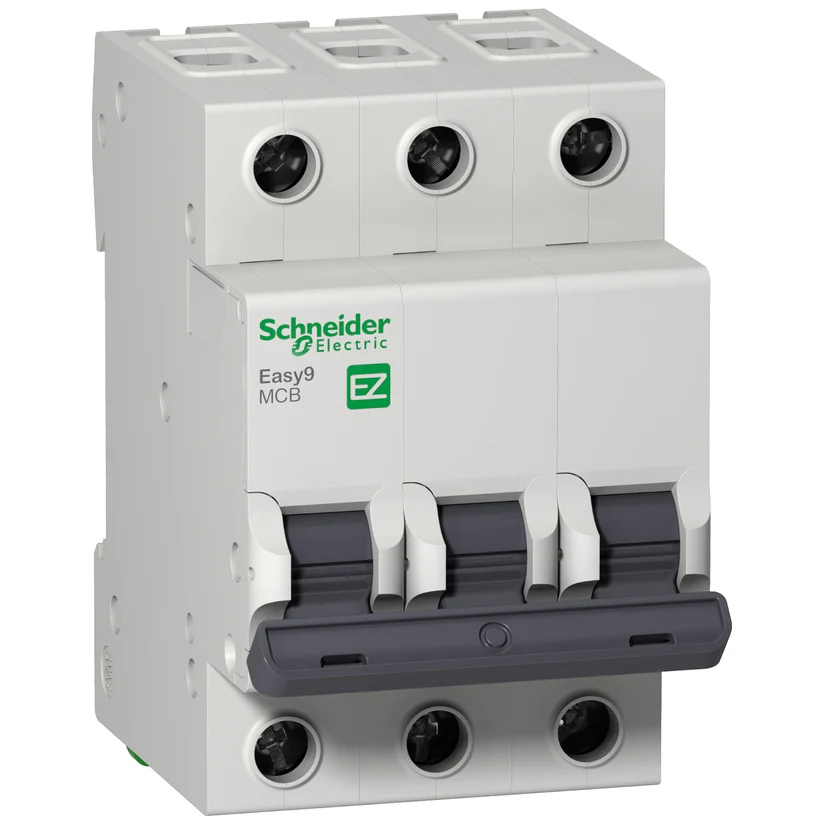

The EZ9F43106 Product Picture by Schneider Electric features a Miniature Circuit Breaker (MCB) from the Easy9 series. This 3-pole MCB is available in various amperages, including 6A, 10A, 16A, 20A, 25A, 32A, and 40A, with a C curve for efficient circuit protection. The product is designed for reliability and ease of use in electrical installations.
Specifications
| BRAND | Schneider |
|---|---|
| Ampere Rating | 10A, 16A, 20A, 25A, 32A, 40A, 6A |
| No of Poles | 3 Pole |
Product Specifications
|
Range
|
easy9
|
|
component type
|
miniature circuit-breaker
|
|
device application
|
distribution
|
|
poles description
|
3pole
|
|
number of protected poles
|
3
|
|
rated current [in]
|
6 a, 10 a, 16 a, 20 a, 25a, 32 a, 40 a
|
|
network type
|
ac
|
|
trip unit technology
|
thermal-magnetic
|
|
curve code
|
c
|
|
breaking capacity
|
icn 6000 a
|
|
rated operational voltage [ue]
|
220 v ac 50/60 hz / 400 v ac 50/60 hz
|
|
magnetic tripping limit
|
5…10 x in
|
|
control type
|
toggle
|
|
mounting mode
|
clip-on
|
|
mounting support
|
din rail
|
|
mechanical durability
|
10000 cycles
|
|
electrical durability
|
4000 cycles
|
|
standards
|
iec 60898-1
|
|
product certifications
|
ce
|
|
ip degree of protection
|
ip20 conforming to iec 60529
|
|
relative humidity
|
95 % at -25…60 °c
|
|
ambient air temperature for operation
|
–5…60 °c
|
|
ambient air temperature for storage
|
-40…85 °c
|
