Circuit Breakers, Miniature Circuit Breakers

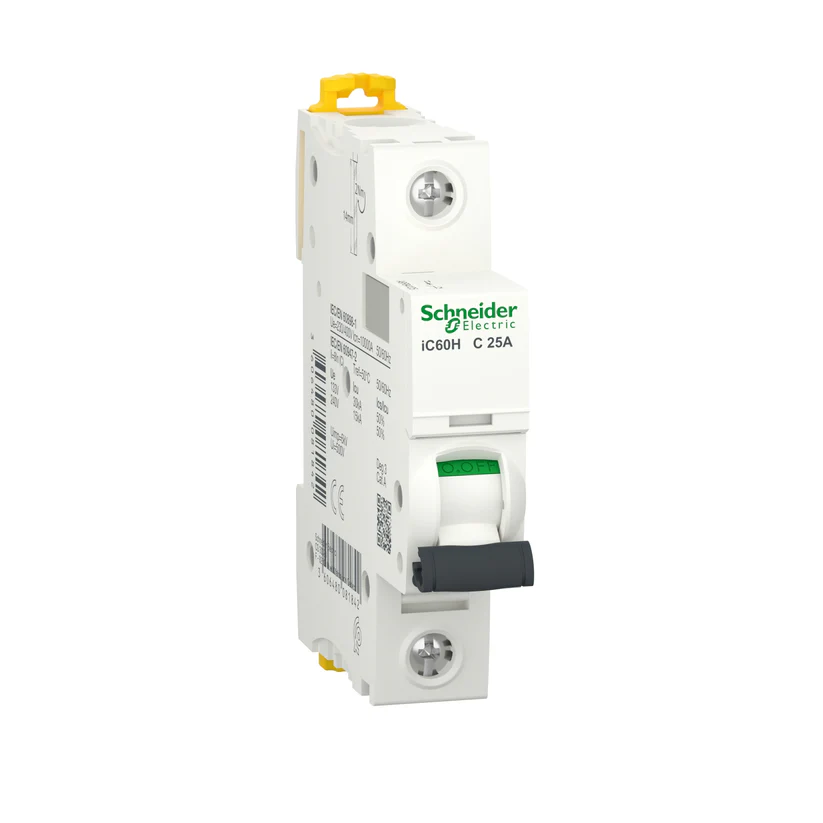

Schneider iC60H 1 Pole Miniature Circuit Breaker 10 kA
Key Features
- Device application: Distribution
- Range: Acti9
- Product or component type: Miniature circuit-breaker
- device short name: iC60H
- Poles description: 1P
- Number Of protected poles: 1
- Rated current [In]: 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
- Network type: DC/AC
- Trip unit technology: Thermal-magnetic
- Curve code: C
- Breaking capacity: 10000 A
Brand:
Availability:
50 in stock
Price range: ₨2,700 through ₨4,500
Schneider iC60H is a high-performance Miniature Circuit Breaker (MCB) designed for electrical protection in various applications. Available in 1 Pole configuration with current ratings ranging from 6A to 63A, it offers reliable overcurrent protection with a breaking capacity of 10 kA. This compact and durable circuit breaker ensures the safety of electrical circuits by swiftly interrupting the flow of current in case of a fault, preventing damage to equipment and enhancing overall electrical system reliability.
Specifications
| BRAND | Schneider |
|---|---|
| Ampere Rating | 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 6A |
| No of Poles | 1 Poles |
Product Specifications
|
Device application
|
distribution
|
|
product name
|
acti9 ic60
|
|
product or component type
|
miniature circuit-breaker
|
|
device short name
|
ic60h
|
|
poles description
|
1p
|
|
number of protected poles
|
1
|
|
rated current [in]
|
2a, 4a, 6a, 10a, 16a, 20a, 32a, 40a, 50a, 63a
|
|
network type
|
dc/ac
|
|
trip unit technology
|
thermal-magnetic
|
|
curve code
|
c
|
|
breaking capacity
|
10 ka
|
|
standards
|
en 60898-1, iec 60947-2, iec 60898-1, en 60947-2
|
|
network frequency
|
50/60 hz
|
|
magnetic tripping limit
|
8 x in +/- 20 %
|
|
rated service breaking capacity [ics]
|
10000 a
|
|
limitation class
|
3 conforming to en 60898-1 / 3 conforming to iec 60898-1
|
|
rated insulation voltage [ui]
|
00 v ac 50/60 hz conforming to en 60947-2, 500 v ac 50/60 hz conforming to iec 60947-2
|
|
rated impulse withstand voltage [uimp]
|
6 kv conforming to en 60947-2, 6 kv conforming to iec 60947-2
|
|
contact position indicator
|
yes
|
|
control type
|
toggle
|
|
local signalling
|
trip indicator
|
|
mounting mode
|
fixed
|
|
mounting support
|
din rail
|
|
weight
|
0.215 kg
|
|
color
|
white
|
|
mechanical durability
|
20000 cycles
|
|
electrical durability
|
10000 cycles
|
|
connections – terminals
|
single terminal (top or bottom) 1…25 mm² rigid, single terminal (top or bottom) 1…16 mm² flexible
|
|
wire stripping length
|
14 mm for top or bottom connection
|
|
tightening torque
|
2 n.m top or bottom
|
|
earth-leakage protection
|
without
|
Based on 0 reviews
Be the first to review “Schneider iC60H 1 Pole Miniature Circuit Breaker 10 kA”
