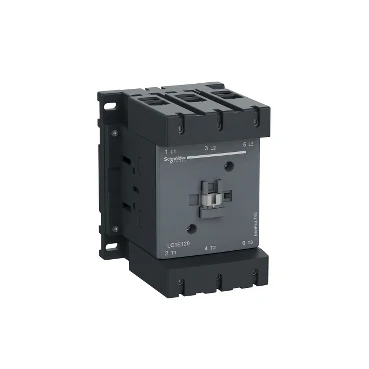

Schneider LC1E120M5 TeSys TVS contactor, 4P (4 NO) AC-3 120A 220 V AC Coil
Key Features
- Range: Easy TeSys
- Component Type: Contactor
- Device short name: LC1E
- Poles description: 3 Pole
- Net weight: 2.3 kg
- Pole contact composition: 3 NO
- Operational Current Ampere: 120A
- Thermal Current Ampere: 150A
- Capacity: 59 / 80 KW (HP)
Brand:
Availability:
50 in stock
₨55,000
50 in stock
EasyPact TVS contactor 3 poles for motor applications up to 120A 59kW@440V. It provides a 220V 50Hz AC coil, 3NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 120mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.8 Mcycles electrical durability AC-3 and 4 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Specifications
| BRAND | Schneider |
|---|
Product Specifications
|
Range of product
|
easy tesys control
|
|
component type
|
contactor
|
|
device short name
|
lc1e
|
|
contactor application
|
resistive load / motor control
|
|
poles description
|
3p
|
|
net weight
|
2.3 kg
|
|
thermal current ampere
|
150a
|
|
capacity
|
59 / 80 kw (hp)
|
|
rated operational voltage [ue]
|
power circuit
|
|
rated operational current [ie]
|
120 a
|
|
control circuit voltage [uc]
|
220 v ac 50/60 hz
|
|
pole contact composition
|
3 no
|
|
conventional free air thermal current [ith]
|
150 a (at 40 °c)
|
|
rated breaking capacity
|
960 a at 440 v for power circuit conforming to iec 60947
|
|
average impedance
|
0.6 mohm – ith 150 a 50 hz for power circuit
|
|
overvoltage category
|
iii
|
|
pollution degree
|
3
|
|
mechanical durability
|
400000 cycles
|
|
control circuit type
|
ac at 50/60 hz
|
|
operating time
|
20…50 ms on closing / 6…20 ms on opening
|
|
maximum operating rate
|
1200 cyc/h 55 °c mounting support
|
|
operating altitude
|
3000 m without derating
|
|
fire resistance
|
850 °c conforming to iec 60695-2-1
|
