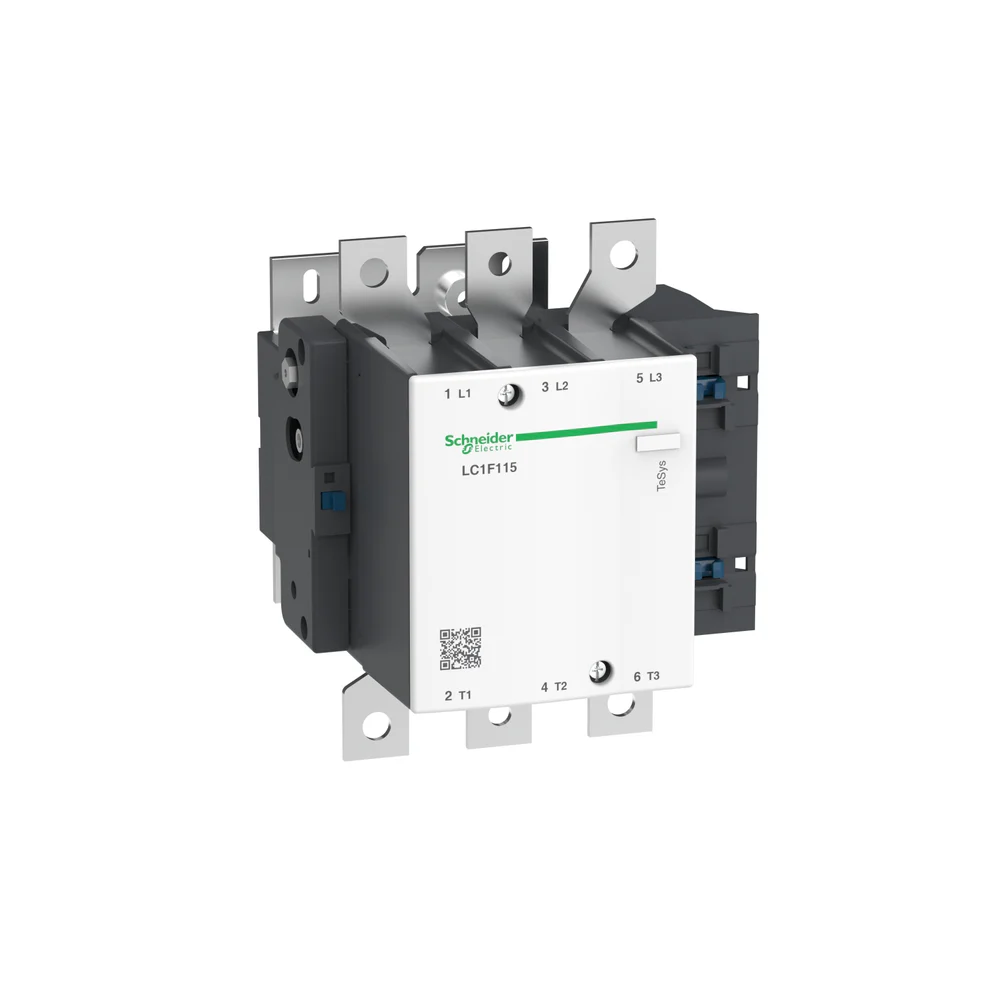

Schneider LC1F115 TeSys F Contactor, 3P (3 NO) AC-3 115 A 220 V AC Coil
Key Features
- Range: TeSys F
- Model: LC1F
- Component Type: Contactor
- Device short name: LC1F
- Poles description: 3 Pole
- Pole contact composition: 3 NO
- Operational Current Ampere: 115A
- Thermal Current Ampere: 200 A
- Capacity: 59 / 77 KW (HP)
- Net weight: 3.43 kg
Brand:
50 in stock
₨95,000
50 in stock
TeSys F contactor, 3 poles (3NO), 115A/690V AC-3, for motor applications up to 55kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
| BRAND | Schneider |
|---|
Product Specifications
|
Range of product
|
tesys f
|
|
component type
|
contactor
|
|
device short name
|
lc1f
|
|
contactor application
|
motor control
|
|
poles description
|
3p
|
|
thermal current ampere
|
200
|
|
capacity
|
59 / 77 kw (hp)
|
|
rated operational voltage [ue]
|
<= 690 v ac 50/60 hz <= 460 v dc
|
|
rated operational current [ie]
|
200 a (at <40 °c) at <= 440 v ac-1 / 115 a (at <55 °c) at <= 440 v ac-3
|
|
control circuit voltage [uc]
|
220 v ac 40…400 hz
|
|
net weight
|
3.43 kg
|
|
compatibility code
|
lc1f
|
|
pole contact composition
|
3 no
|
|
conventional free air thermal current [ith]
|
200 a (at 40 °c)
|
|
rated breaking capacity
|
920 a conforming to iec 60947-4-1
|
|
average impedance
|
0.37 mohm – ith 200 a 50 hz
|
|
overvoltage category
|
iii
|
|
mechanical durability
|
10 mcycles
|
|
control circuit type
|
ac at 40…400 hz
|
|
heat dissipation
|
5.9…7.2 w
|
|
operating time
|
35 ms closing (at uc) / 130 ms opening (at uc)
|
|
mounting support
|
plate
|
|
operating altitude
|
3000 m without derating
|
