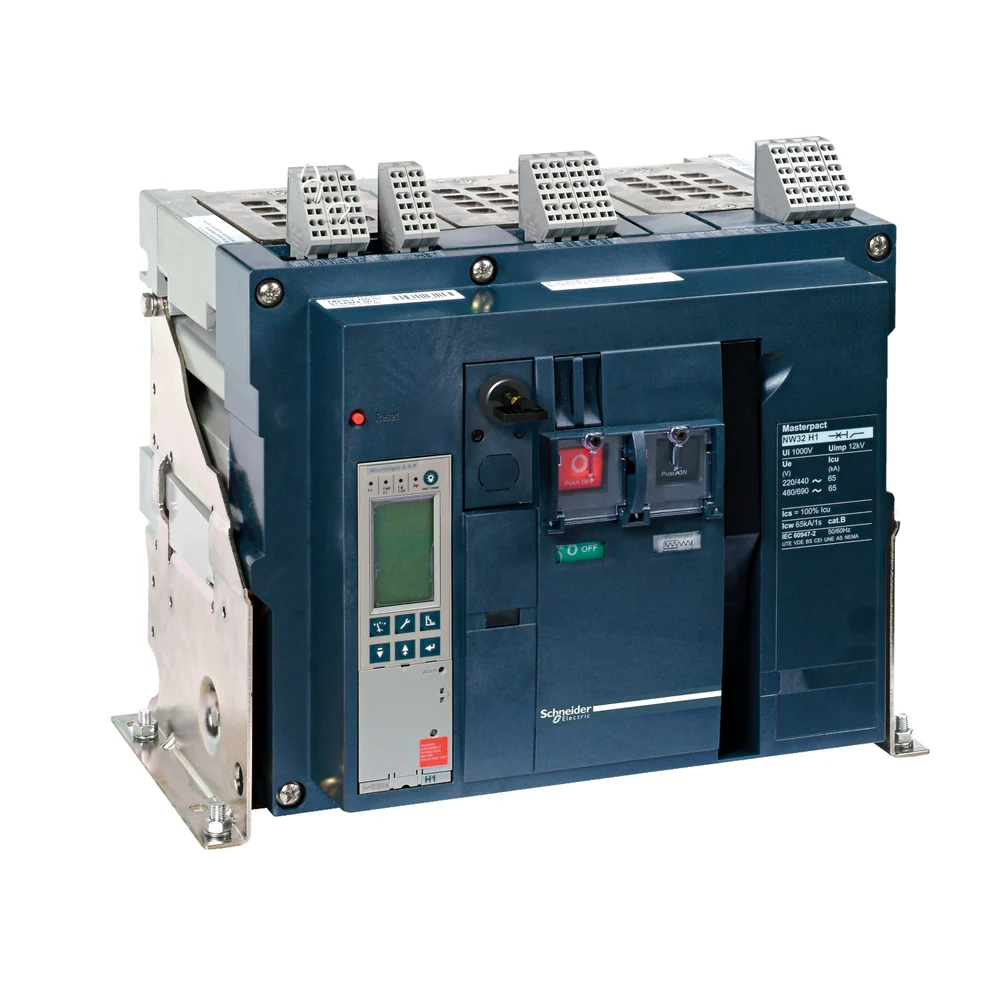

Schneider MasterPact NW08H1 3 Pole 800A Air Circuit Breaker
Key Features
- Range: MasterPacT
- Product name: MasterPact NW
- Net weight: 50 kg
- circuit breaker name: MasterPact NW08H 1
- Product or component type: Circuit breaker
- Device application: Power distribution protection
- Poles description: 3P
- Control unit: Without control unit
- Rated current [In]: 800 A at 40 oc
Brand:
Availability:
50 in stock
₨740,000
50 in stock
The MasterPact NW08H1 series offers versatile circuit breaker frames to meet varying current requirements. Choose from three options with current ratings of 800A. Each frame features a robust 3-pole fixed design, ensuring reliable electrical protection. With an impressive interrupting capacity of 65kA at 440VAC 50/60Hz (Icu), these circuit breaker frames are well-suited for demanding industrial applications. Notably, the frames come without a control unit, providing flexibility for integration into systems with external controls. Select the appropriate current rating to meet the specific needs of your electrical protection system.
Specifications
| BRAND | Schneider |
|---|
Product Specifications
|
Range
|
masterpact
|
|
product name
|
masterpact nw
|
|
net weight
|
50 kg
|
|
circuit breaker name
|
masterpact nw08h 1
|
|
product or component type
|
circuit breaker
|
|
device application
|
power distribution protection
|
|
poles description
|
3p
|
|
control unit
|
without control unit
|
|
rated current [in]
|
800 a, at 40 oc
|
|
performance type
|
hi 65 ka440 v ac
|
|
[uel rated operational voltage
|
690 v ac 50/60 hz
|
|
suitability for isolation
|
yes conforming to en/iec 60947-2
|
|
selectivity category
|
category b
|
|
control type
|
push-button
|
|
mounting mode
|
fixed
|
|
rated ultimate short-circuit breaking capacity [icu]
|
65 ka
|
|
rated short-time withstand current [icw]
|
65 ka 1 s / 36 ka 3 s
|
|
sensor rating
|
400a / 800a
|
|
rated insulation voltage [ui]
|
1000 v ac 50/60 hz
|
|
rated impulse withstand voltage [uimp]
|
12 kv
|
|
mechanical durability
|
12500 cycles without maintenance / 25000 cycles with maintenance
|
|
standards
|
en/iec 60947-1 / en/iec 60947-2
|
|
ip degree of protection
|
ip30 conforming to iec 60529 pollution degree
|
|
ambient air temperature for operation
|
-25.. 70 c
|
|
ambient air temperature for storage
|
-40…85 c
|
|
operating altitude
|
0.-.2000 m without derating / 2000 m…5000 m with derating
|
